Enterprise-grade ESL hardware designed for modern retail environments.

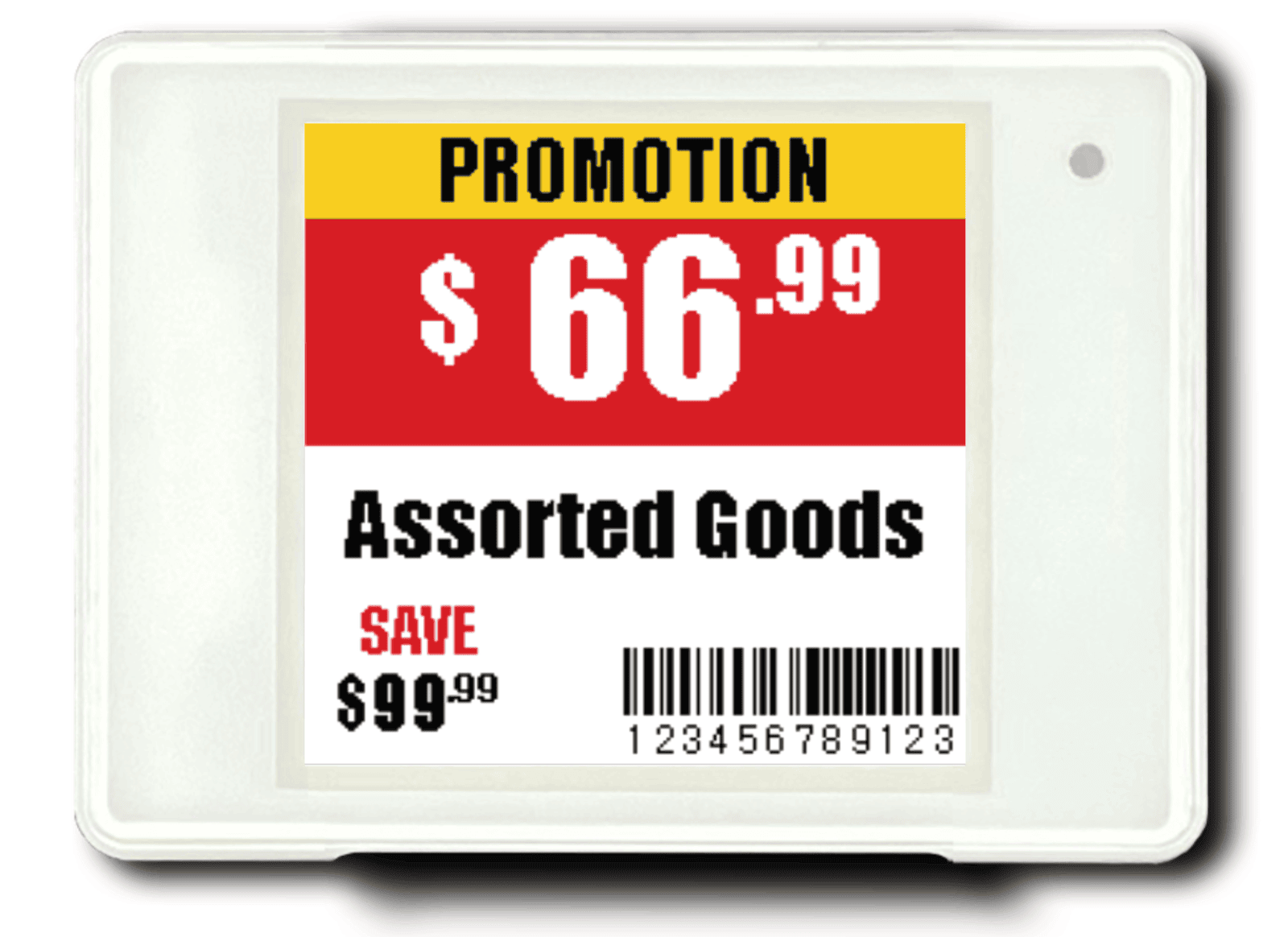

Display type: Full graphic E-ink display
Screen size: 1.54 inch
Resolution (Pixel): 200 x 200
Communication: 2.4G
Wireless connectivity: Private Protocol
Display color: B/W/R/Y
LED light: 7 colors
Battery: 1 x CR2450
Battery life: 2 update/day, no less than 5 years
Working temp.: 0~40℃
Product Size(mm): 49 x 37.62 x 13.3

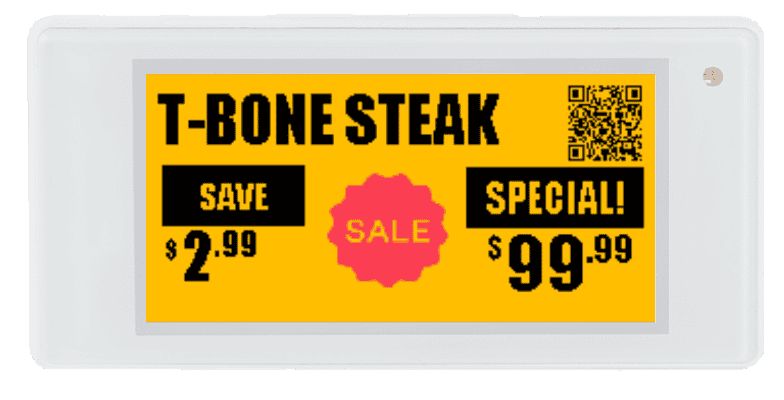

Display type: Full graphic E-ink display
Screen size: 2.13 inch
Resolution (Pixel): 250 x 122
Communication: 2.4G
Wireless connectivity: Private Protocol
Display color: B/W/R/Y
LED light: 7 colors
Battery: 2 x CR2450
Battery life: 4 update/day, no less than 5 years
Working temp.: 0~40℃
Product Size(mm): 71.28 x 34.78 x 12.3

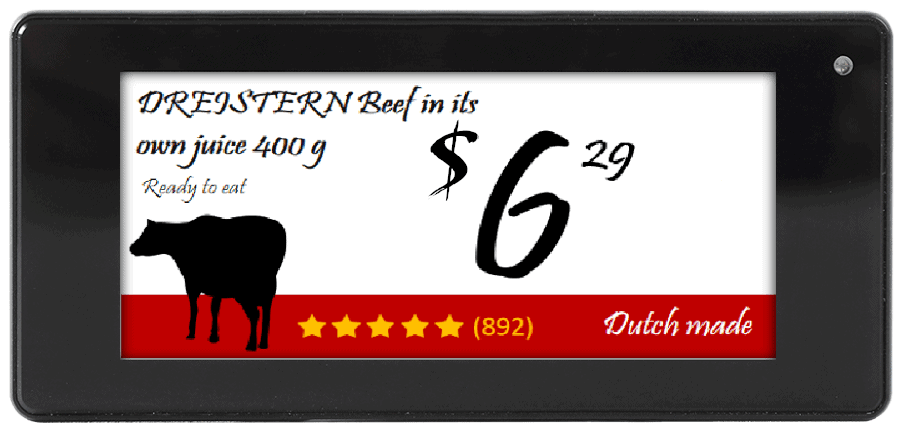

Display type: Full graphic E-ink display
Screen size: 2.66 inch
Resolution (Pixel): 296 x 152
Communication: 2.4G
Wireless connectivity: Private Protocol
Display color: B/W/R/Y
LED light: 7 colors
Battery: 2 x CR2450
Battery life: 4 update/day, no less than 5 years
Working temp.: 0~40℃
Product Size(mm): 85.79 x 41.89 x 12.3

Display type: Full graphic E-ink display
Screen size: 2.9 inch
Resolution (Pixel): 296 x 128
Communication: 2.4G
Wireless connectivity: Private Protocol
Display color: B/W/R/Y
LED light: 7 colors
Battery: 2 x CR2450
Battery life: 4 update/day, no less than 5 years
Working temp.: 0~40℃
Product Size(mm): 91.39 x 41.99 x 12.3

Display type: Full graphic E-ink display
Screen size: 3.5 inch
Resolution (Pixel): 384 x 184
Communication: 2.4G
Wireless connectivity: Private Protocol
Display color: B/W/R/Y
LED light: 7 colors
Battery: 2 x CR2450
Battery life: 4 update/day, no less than 5 years
Working temp.: 0~40℃
Product Size(mm): 100.99 x 49.79 x 12.3

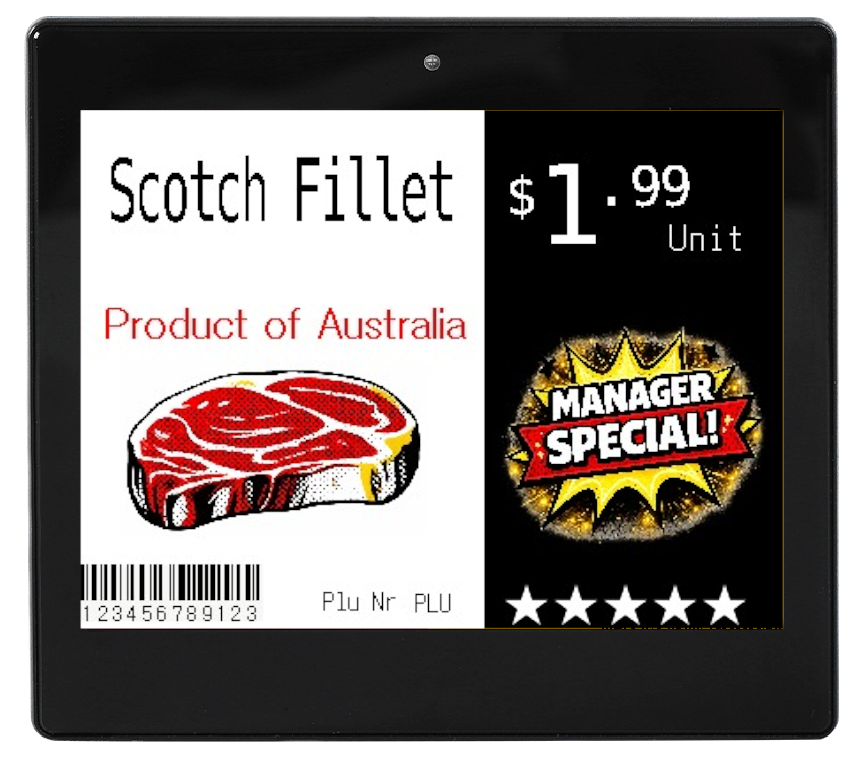

Display type: Full graphic E-ink display
Screen size: 4.2 inch
Resolution (Pixel): 400 x 300
Communication: 2.4G
Wireless connectivity: Private Protocol
Display color: B/W/R/Y
LED light: 7 colors
Battery: 3 x CR2450
Battery life: 4 update/day, no less than 5 years
Working temp.: 0~40℃
Product Size(mm): 99.16 x 89.16 x 12.3

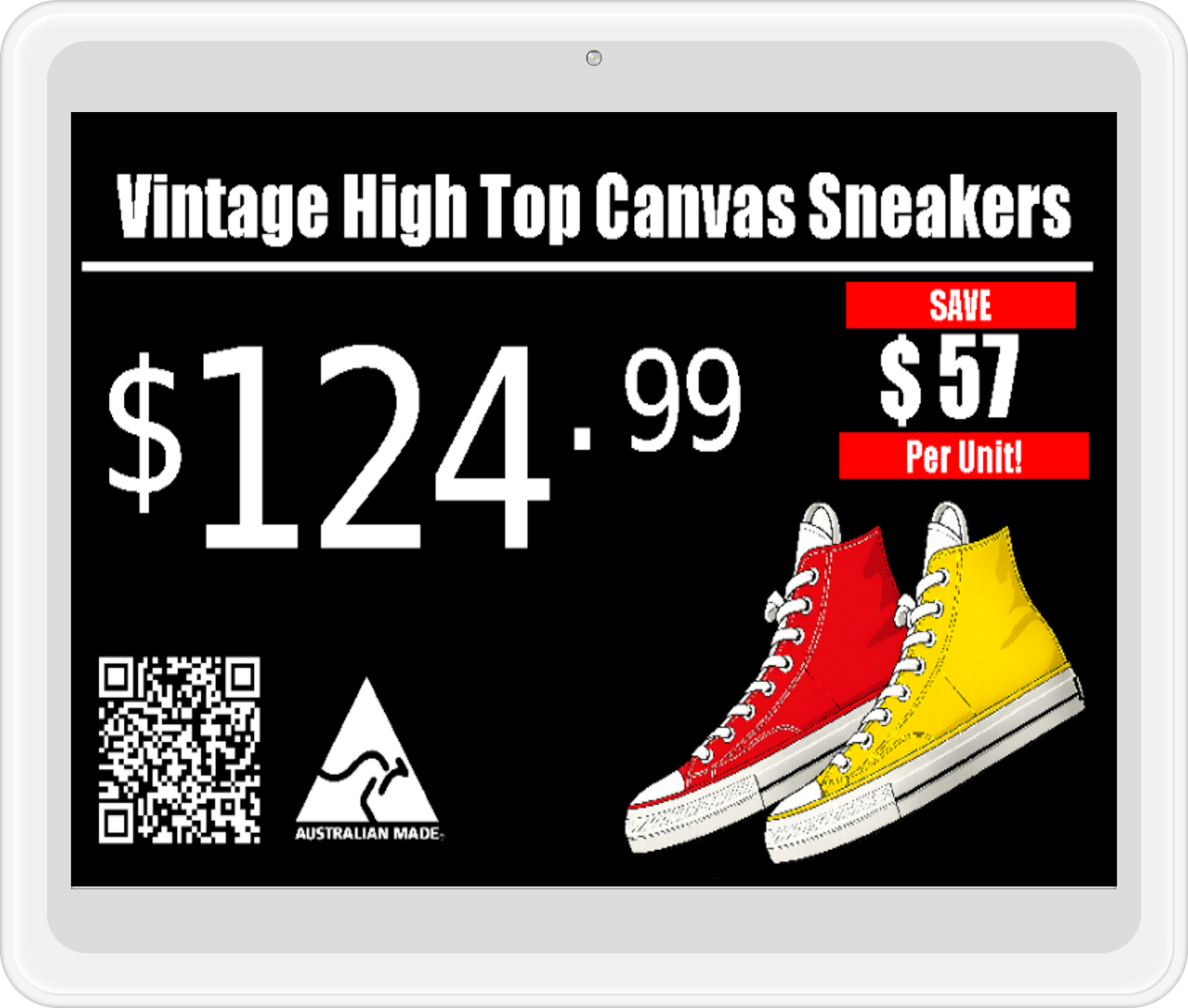

Display type: Full graphic E-ink display
Screen size: 5.83 inch
Resolution (Pixel): 648 x 480
Communication: 2.4G
Wireless connectivity: Private Protocol
Display color: B/W/R/Y
LED light: 7 colors
Battery: 6 x CR2450
Battery life: 4 update/day, no less than 5 years
Working temp.: 0~40℃
Product Size(mm): 133 x 113 x 9

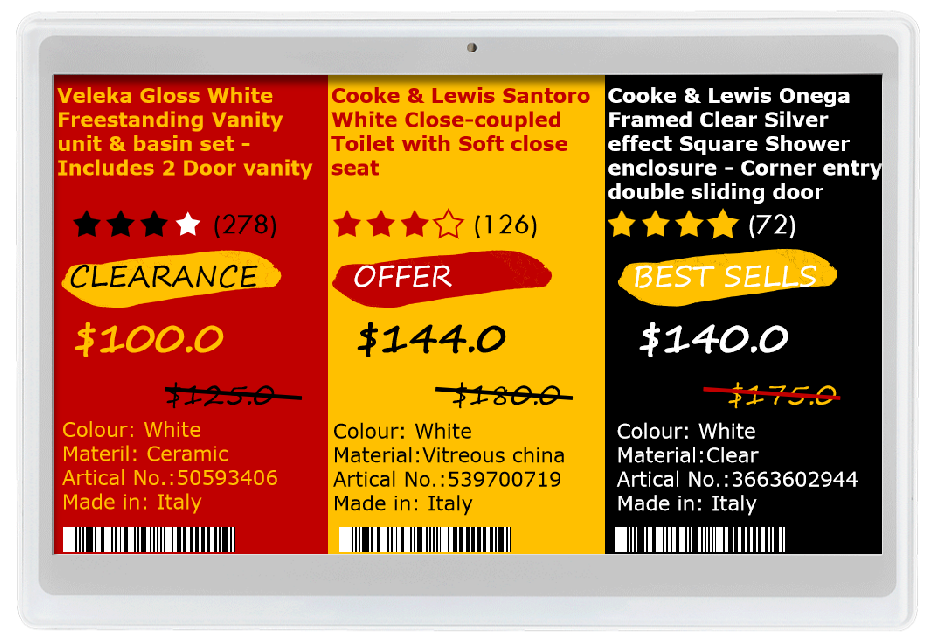

Display type: Full graphic E-ink display
Screen size: 7.5 inch
Resolution (Pixel): 800 x 480
Communication: 2.4G
Wireless connectivity: Private Protocol
Display color: B/W/R/Y
LED light: 7 colors
Battery: 6 x CR2450
Battery life: 4 update/day, no less than 5 years
Working temp.: 0~40℃
Product Size(mm): 178 x 126 x 9

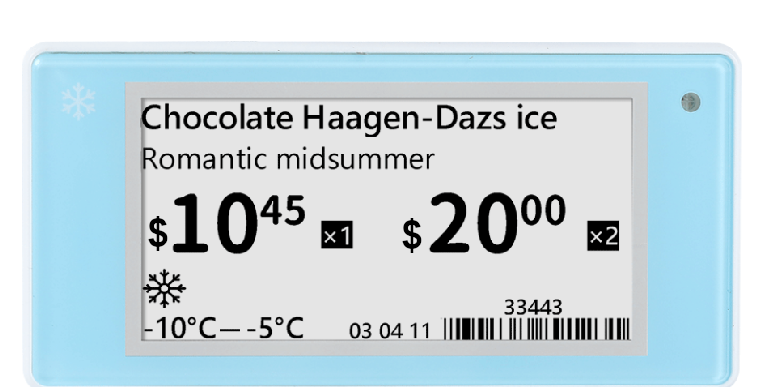

Display type: Full graphic E-ink display
Screen size: 2.13 inch
Resolution (Pixel): 250 x 122
Communication: 2.4G
Wireless connectivity: Private Protocol
Display color: B/W
LED light: 7 colors
Battery: 2 x CR2450
Battery life: 2 update/day, no less than 5 years
Working temp.: -20℃~40℃
Product Size(mm): 71 x 34 x 12.3

Display type: Full graphic E-ink display
Screen size: 2.66 inch
Resolution (Pixel): 296 x 152
Communication: 2.4G
Wireless connectivity: Private Protocol
Display color: B/W
LED light: 7 colors
Battery: 2 x CR2450
Battery life: 2 update/day, no less than 5 years
Working temp.: -20℃~40℃
Product Size(mm): 86 x 42 x 12.3

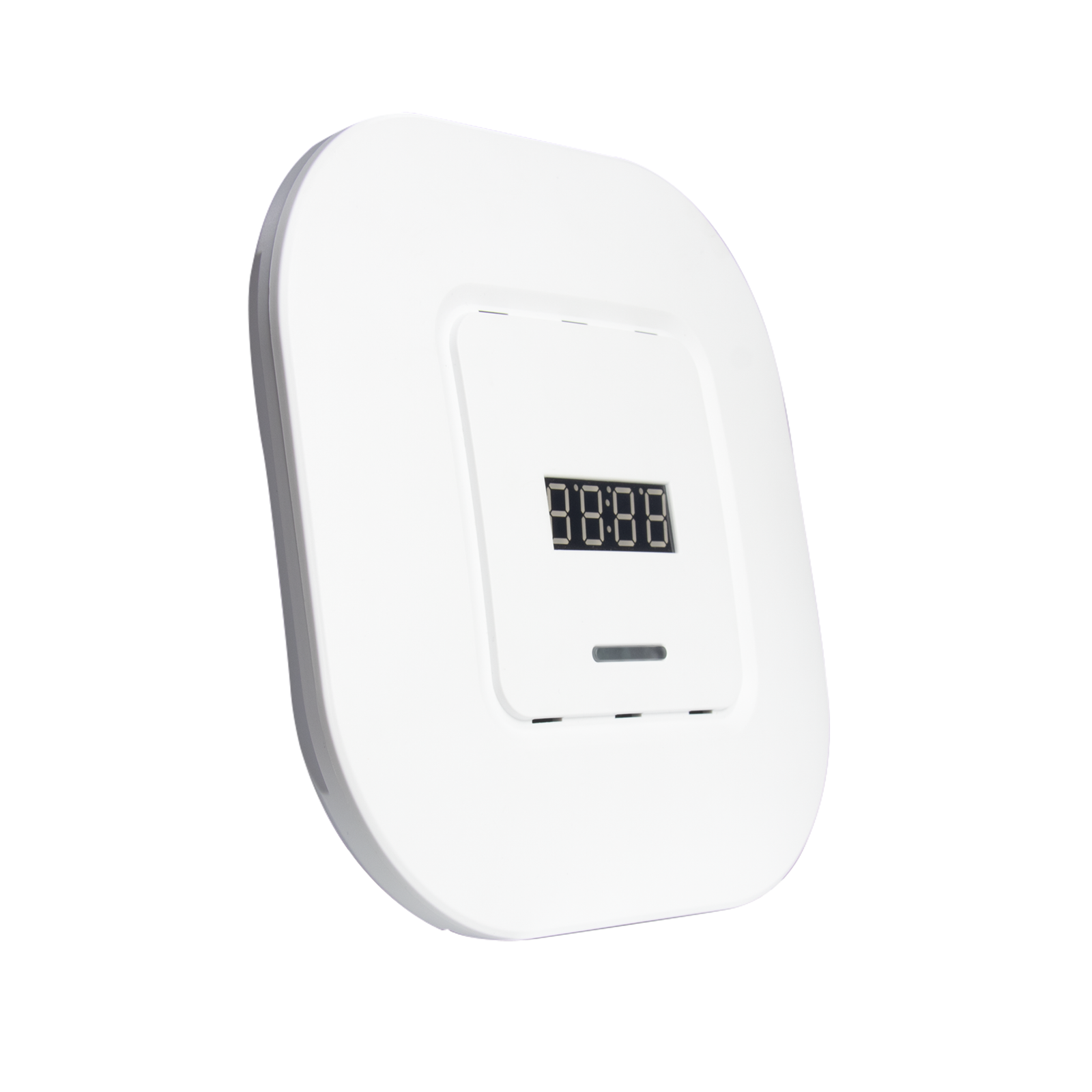

Dimension: 190×190×41 (mm)
Operating voltage: DC 12V, PoE
Operating current: <300mA
Wireless connectivity: Private Protocol
Communication mode: 2.4G
Communication Distance: 20-50m
Data interface: Standard network cable
interface
Configuring interface: USB2.0
Operating temperature: -10°-55°C
Storage temperature: -20°-70°C
Operating Humidity: 45%-70%RH

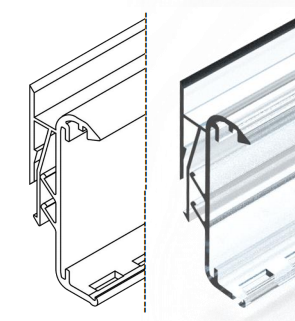

Flat rail is used to fix digital labels on
flat shelves. You can use 3M tape to
fix the rail, it can be directly embedded
into the layer board.

Color: Transparent
Material: High strength PC
Length: 100 cm

Suitable products:

1.54″/2.13″/2.66″/2.9″/3.5″/4.2″

ESL adaptor to work with other
accessories.

Color: transparent
Material: PC
Suitable products:

1.54, 2.13, 2.66, 2.9, 3.5, 4.2 inch

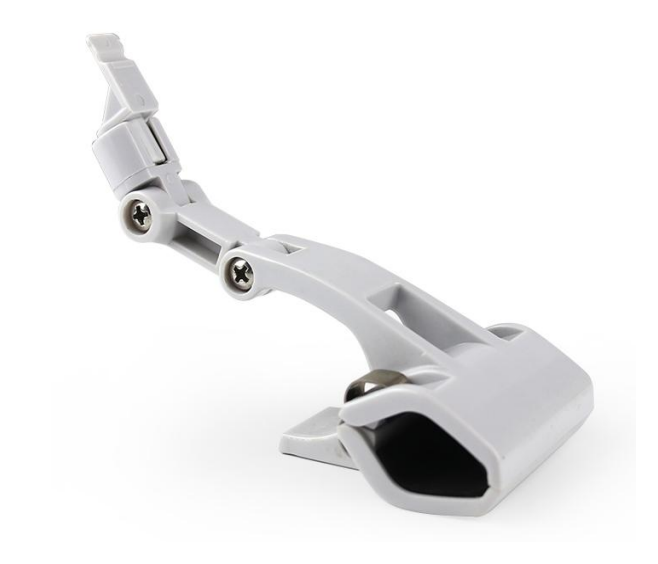

Universal Clamp Clip
for Flat Shelf/ Wire
Basket/ wire etc. With adjustable angle
function

Works with Adapter REE-H001
Color: grey
Material: ABS
Clip mouth width: 0-34mm
Suitable products: 4.2, 5.83, 7.5, 10.2 inch

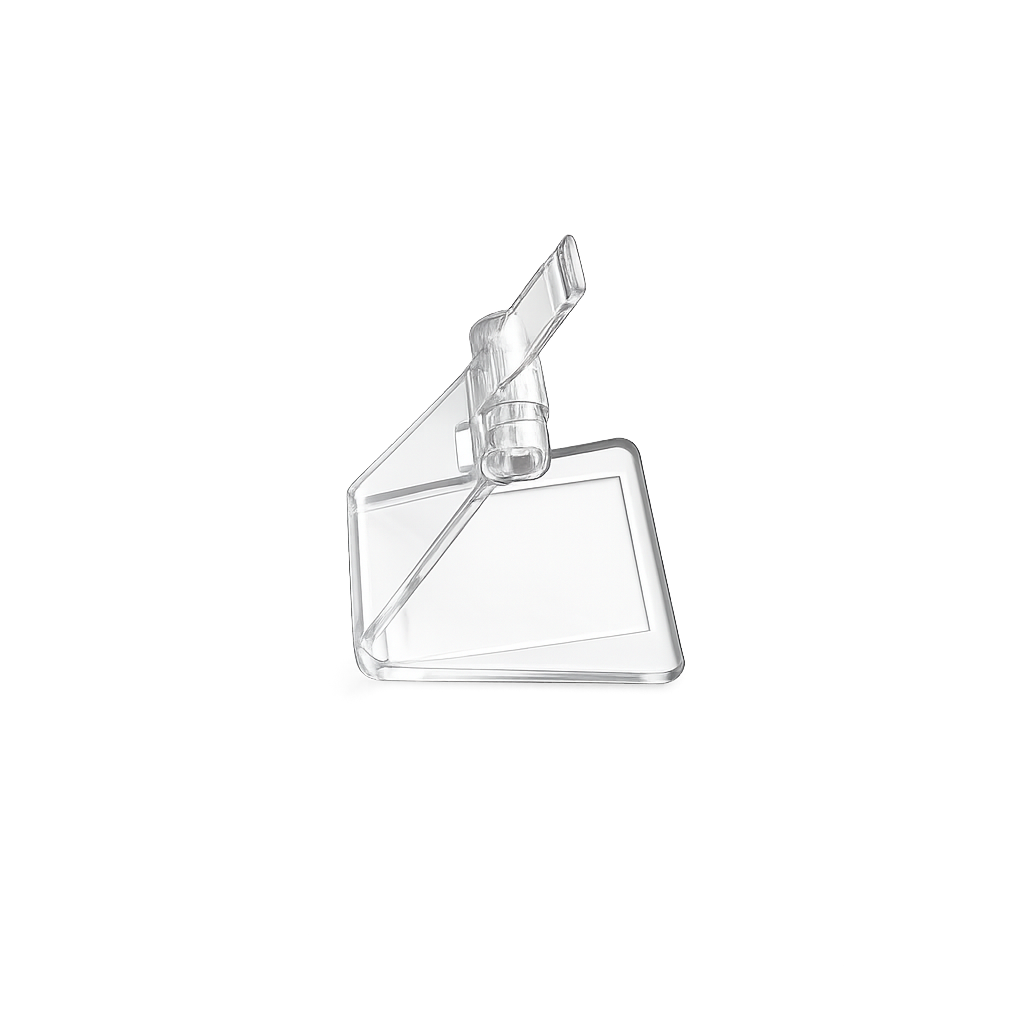

It is ideal for clamping onto shelves, such as glass shelves or wooden shelves with thickness 12-20mm

Material: high-strength PC plastic Color options: Transparent

Suitable products: 1.54, 2.13, 2.66, 2.9, 3.5 and 4.2 inch ESLs

It is for for both Φ 4-6mm and 6-8 mm T hook, with adjustable angle function

Material: high- strength PC plastic

Color options: Transparent

Suitable products: 1.54, 2.13, 2.66, 2.9, 3.5 and 4.2 inch ESLs

This small stand allows the ESL tag to be placed on a table or a flat surface

Works with Adapter EF10003 Stand height: 5.2 cmColor: transparent Material: PC plastic Suitable products: 1.54, 2.13, 2.66, 2.9, 3.5 inch

This stand allows the esl tag to be placed on a table or a flat surface

Stand height: 10.5 cm

Color: transparent

Material: PC plastic

Suitable products: 3.5, 4.2, 5.8, 7.5 inch ESL

This accessory can hang ESL tags, it
works with HYZ10003 adaptor

Material: PC plastic
Color options: Transparent
Suitable products: 4.2 inch ESLs

This is a removal tool
used to remove the
ESL from the rail or
other accessories.

Material: PC plastic
Color options: White
